Lynxter S300X Filament Printer
Lynxter S300X Filament Printer

IDEX THERMOPLASTIC 3D PRINTER

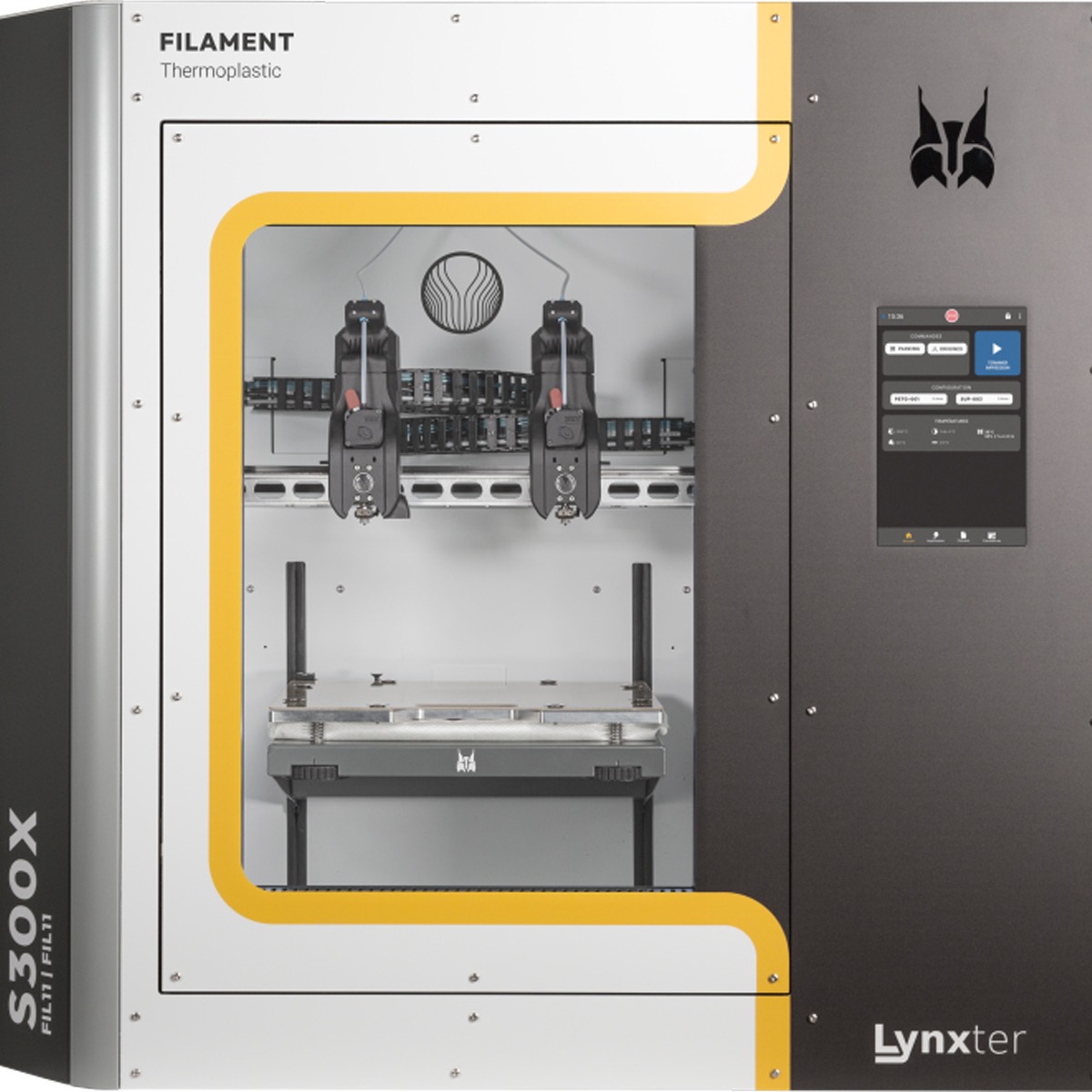

The Lynxter S300X Filament Printer is a high-speed industrial IDEX 3D printer, equipped with two independent print heads for increased productivity, quick print head change, and compatibility with a wide variety of high-performance thermoplastics.

INDEPENDENT DUAL EXTRUSION

Pushing IDEX 3D printing further

Embrace these new features with IDEX (Independent Dual Extruder) 3D printing:
– The duplication function significantly increases productivity.
– The mirror function allows two symmetrical geometries to be printed simultaneously
– Dual-material printing enables the combination of two materials in a single print.
– The support function allows the creation of complex designs.

DUPLICATION, MIRROR FUNCTION, SUPPORT, and DUAL MATERIAL printing of technical thermoplastics

More speed, assured quality

The S300X – FIL11 | FIL11 offers a real travel speed up to 1000 mm/s on the X and Y axes, 50 mm/s on the Z axis, accelerations up to 10,000 mm/s², and an output rate of 24 mm³/s with a 0.4 mm nozzle. It can double its performance thanks to its advanced IDEX function. The quick nozzle change process, taking less than 5 seconds, minimizes downtime and maximizes efficiency.

Advanced Thermoplastic 3D Printing

The S300X – FIL11 | FIL11 supports a wide range of high-performance thermoplastics, from PA-CF to advanced materials such as PEKK (Polyetherketoneketone).
This printer is the perfect tool for industries requiring robust, high-quality components.

COMPACT INDUSTRIAL 3D PRINTER

High-Performance Materials

A heated chamber for robust and precise parts

A heated chamber up to 80 °C with uniform temperature control is essential for maintaining consistent print quality. This feature ensures that the entire printing environment is kept at a stable and optimal temperature, reducing the risks of delamination and part deformation.

Integrated Dehydration Unit

This unit ensures high-quality 3D printing by removing moisture from filaments through active drying and closed-loop storage, guaranteeing optimal conditions to prevent moisture reabsorption during production. This helps avoid defects like stringing, adhesion issues, or porosity. An essential feature, directly integrated into the machine for optimal compactness and productivity. The unit can hold up to two 2 kg spools (maximum coil Ø300mm).



Health-Conscious Design

The printer is equipped with a closed chamber incorporating industrial-grade HEPA H14 and active carbon filtration to neutralize fine particles (particles larger than 0.3 micron with an efficiency of 99.995%) and volatile organic compounds (VOCs). This chamber is also password-protected to ensure maximum safety for the user and their environment.



  • Print Head Configuration

    2 filament print heads FIL11 – Direct Drive in IDEX
    Extrusion temperature: 500 °C max
    Nozzle diameter: 0.40 mm to 1.20 mm
    Water-cooling

    Printing Materials

    All types of filaments, including brittle and flexible ones, as well as technical materials such as PEKK, PP, PETG-C, PLA, PA, TPE/TPU, HIPS, PVA

  • Extrusion

    Single and dual independent extrusion

    X, Y, Z Resolution

    X-Y: 12.5 μm, Z: 1.0 μm

  • Build Volume

    X 300 – Y 250 – Z 280 mm

    Dimensions

    W 1067 x L 676 x H 1006 mm

  • Thermal Environment

    Heated build plate: 20 °C to 160 °C
    Heated chamber: 20 °C to 80 °C
    Dehydration unit: 20 °C to 60 °C

    Layer Height

    100 μm > 1 mm

  • Build Surface

    Removable
    Hot-swappable
    Precision-ground surface

    Maximum Tool Speed

    Layer height: 100 μm > 1 mm
    Resolution: X-Y = 12.5 μm, Z = 1.0 μm
    Speed: X-Y = 1000 mm/s, Z = 50 mm/s
    Acceleration: 10,000 mm/s²

  • Automatic Calibration

    Print surface leveling
    Tool length calibration
    XY nozzle offset calibration

    Control

    Standalone touchscreen and web interface

  • Connectivity

    Ethernet, online & offline – Open API

    Print format

    Standard Gcode

  • User Health and Safety

    Double filtration: HEPA 14 and active carbon
    Machine access lock
    Intellectual property protection

    Job Security

    End of filament detection
    Resume printing after power outage

  • Configurable Firmware

    Customizable Lynxter firmware (based on RepRap firmware) – Simplify3D software (slicer)

    Power supply

    110-120V/15A or 220-240V/8A, 50-60 Hz

  • Electronics

    Atmel ATSAME70 32-bit: ARM Cortex-M7 3000 MHz

    Data

    Operation traceability
    Intellectual property protection
